Product Description
Makes air conditioner installation easier, quicker, and safer
Optimize the safety of your air conditioner installation with the universal heavy-duty air conditioner support bracket.
Minimizes the chance of damage to the window, window parts or outside wall.
To enjoy a better purchasing experience, PLEASE READ PURCHASING TIPS before placing an order; it would save both our time and money.
Tips:
1.Please check if the AC units you bought already include support brackets.
2.Please note that the AC supports need drill holes on window sills for installation.
3.Please check if the Homeowner Association allow you to drill holes on the window sill to install the brackets.
4.Please know that the brackets might not be so satisfying when works on vinyl , plastic or metal windows though it might technically works.

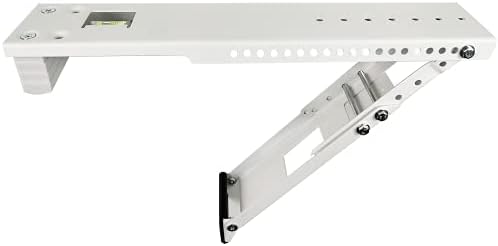

Universal AC Window Air Conditioner Support Bracket

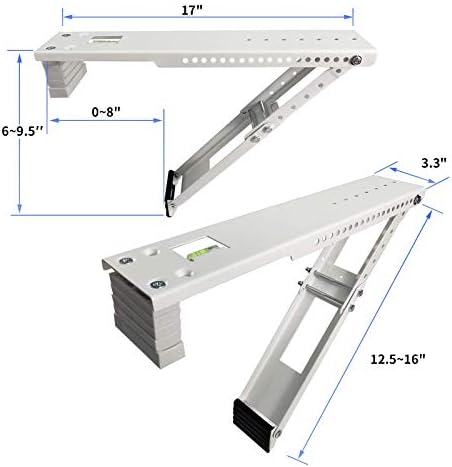

Specification Color:off white Size:Up to 165lbs Unit weight: 2.76 pounds Specification:17″ long A/C resting surface
Bullet Points Features:
Installs from inside the house in minutes Takes the pressure and weight off the window sill Solid epoxy-coated thick steel plate, matte surface suprevent the A/C to drop out of the window Works with any brand name Window Mounted Air Conditioner Window Requirements:
Window sill thickness cannot exceed 16 inches Window sill must be a minimum of 1 1/4 inches deep for placing base Window sill must be able to accept 2 1/2 inches long screws Sliding window lip or window stool cannot exceed 1 7/8 inches Cannot be used with slide casement or casement windows
Block&Spacer
The spacer can be adjusted on the block according to the inclination of the window sill to keep the balance of the brace so that the bracket can be installed well on window sill
Rubber Mounts
Full-rubber mounts design can be better fit the siding wall and make the bracket stable and firm.No damage to outside wall.
High-density Meterial
Solid epoxy-coated thick steel plate prevent rust and rot,matte surface prevent the A/C to drop out of the window
Window&Wall
Works with any brand name Window Mounted Air Conditioner（check installation steps for window requirements），Fits wall thickness from 2″ to 15.2″
Installation Steps
Pic.01 – Find the correct mounting position and drilling screwing holes into window sill. Pic.02 – Align and Mount to Sill. See if A/C Support shelf will clear all obstacles on sill,using Rounded Spacer, Flat Spacer(s) and Block. Pic.03 – Place end of leg falt against underside of shelf. Position Leg footpad against exterior surface. Pic.04 – Final Mounting. Slightly tilt for draining condensation of moisture.
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars 4,781
4.3 out of 5 stars 177
4.3 out of 5 stars 179
4.0 out of 5 stars 124
4.5 out of 5 stars 661
—
Price
$23.99$23.99
— no data
$29.99$29.99
— no data
— no data
— no data
Support
up to 85 lbs up to 165 lbs up to 360 lbs up to 200 lbs 3,000-24,000 BTU 6″ Diameter Hose
Specification
Drilling Needed Drilling Needed Drilling Needed No Drilling Indoor Cover Fit 6″ Hose
UNIVERSAL DESIGN – adapts to most window units (check description below for window requirements)
INDOOR INSTALLATION – easy breezy install, without exterior work, just drilling into window sill
RELIEVES STRESS ON THE WINDOW – Transfers the stress and weight from the window sill and sash to the support and window frame for safety
FITS WALL THICKNESS from 2″ to 15.2″, exclusive built-in bubble level to correct mounting slope position
ALL NECESSARY HARDWARE INCLUDED and all weather construction. Note: If you found feet pad of the leg cannot justly face the wall; please unlock it and turn it over, then fix it in the leg again. Patent No. US D989611
